For a family, wireless signals are more and more important. Therefore, when I renovated the newly purchased 200m2 house five years ago, I directly saved the installation of the network cable. However, in reality, I still regretted myself. The environment at home is very complicated. The wall is very heavy now, and it is difficult to completely cover the signal with a wireless router. Of course, I would like to thank you for the platform worth buying here. After collecting so many routers and gods, after reading the original stickers they shared, I also learned the way of covering the router + AP. One thing to say here is that it is not really bragging about yourself. There is no point in "electrical knowledge".
The host device + AP is a popular networking method, and many people use the router to do the relay. For example, I used two hundred-dollar wireless routers to relay the networking. However, the signal development in this way is not stable and it is also more complicated. In addition, there are many cell phones plus two televisions in the home, as well as NAS, tablets, laptops, and desktop computers. Although they are not used at the same time, the current load situation has reached a load.
Since the Queen wants to broadcast live on the Internet, she also has to be honored by the king. In addition, various wireless devices must compete for bandwidth, and the replacement of routers is imperative. Therefore, the more popular so-called “distributed routing†NETGEAR devices have been selected. The Orbi 3 series RBK30 AC2200 wall plug-in dual routing kit for a single east and a single NETGEAR is a worthy platform to share with everyone. (I am not very professional, please advise if there is insufficient space)
One, out of the box

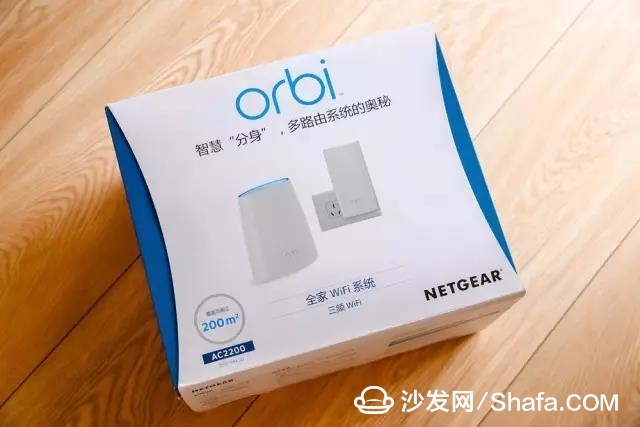

The packaging of the product is somewhat different from the other models of the mesh. The white design is mainly based on Orbi's wisdom “splittingâ€, covering an area of ​​200m2, tri-band WiFi signal, and AC2200M transmission.

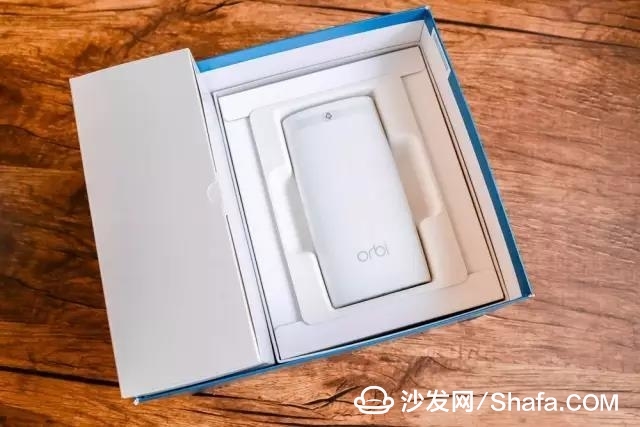

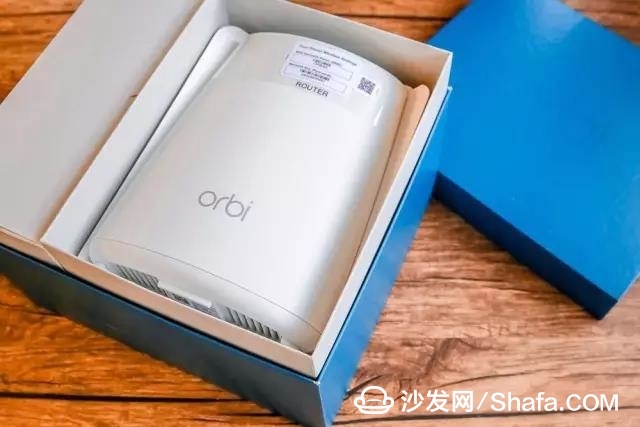

The packing box is divided into two layers. The upper layer is the Orbi ontology route called RBK30, and the lower layer is the socket type aliasing route RBW30.

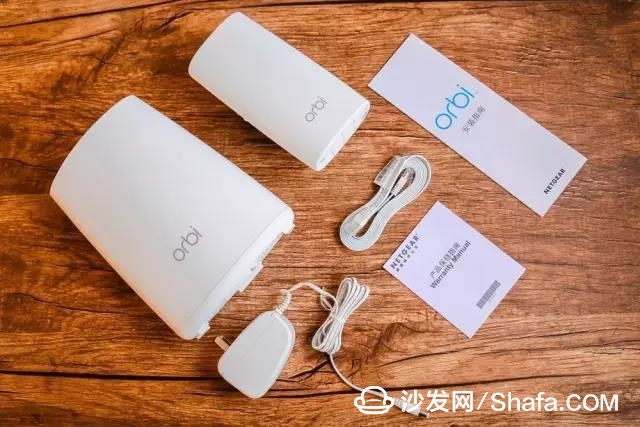

Look at the main accessories: RBK30, RBW30, charger, network cable, manual, and warranty card.

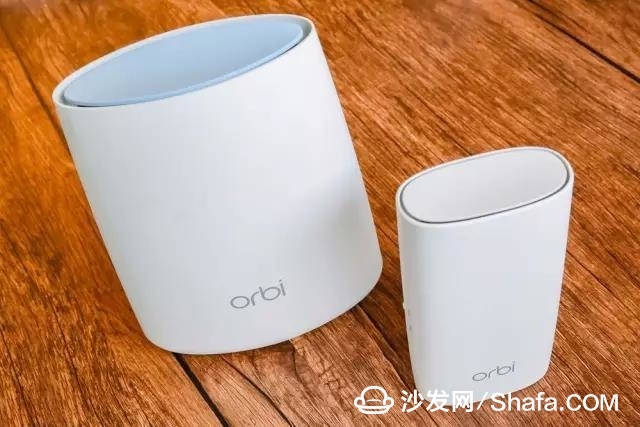

The size of the ontology routing RBK30 is the same as that of the Orbi 4 Series RBK40 AC2200, and there is also an Orbi 5 Series RBK50 AC3000 which is larger in size and also has a correspondingly larger coverage area. The 3-line split-route RBW30 is small in size, and it uses the power supplied directly to the outlet as an extension of the signal. In appearance, they have a rounded oval shape, white and color, high-tech but very stylish, more suitable for display on the table, can also be used as jewelry.

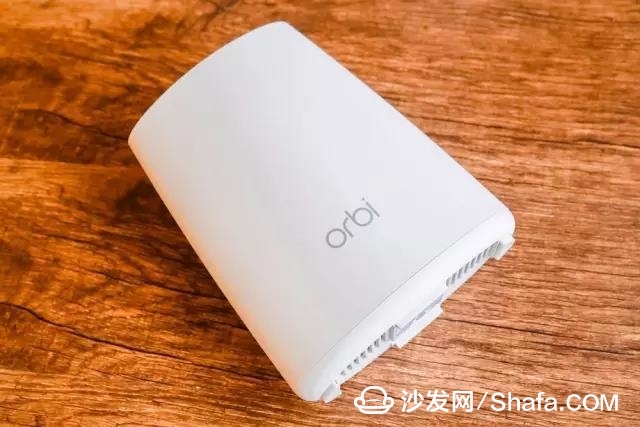

Orbi's ontology routing design of RBK30 is different from common wireless routers. Its antenna has been built in, and the appearance of cleaning is only “Orbiâ€.

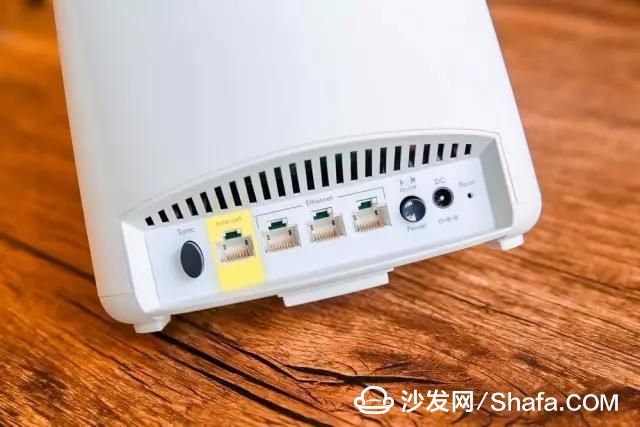

There are various interfaces on the back of the Ontology Routing RBK30. One Wan and three Lan ports all use Gigabit design, power switch, DC power insertion and reset keys, but this device does not even have a USB interface, and people who play file storage may have some disappointed.

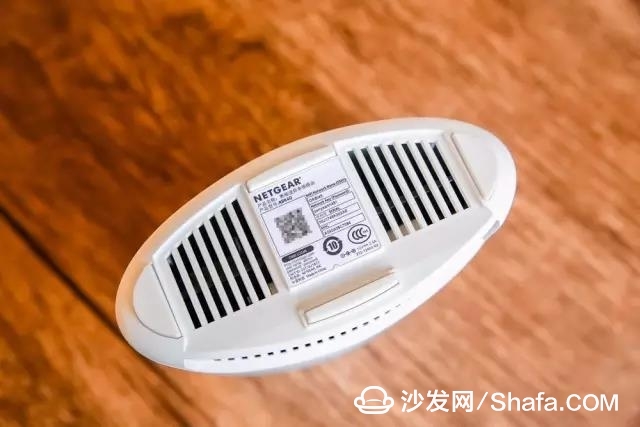

The bottom of the ontology routing RBK30 is the relevant information of the router: the initialized SSID and password, to facilitate the installation and configuration of the mobile phone.

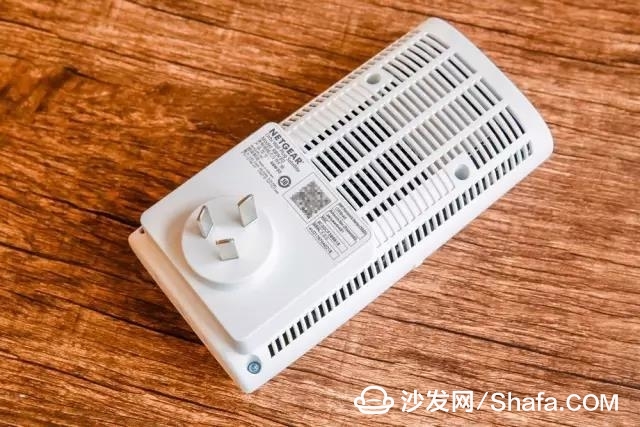

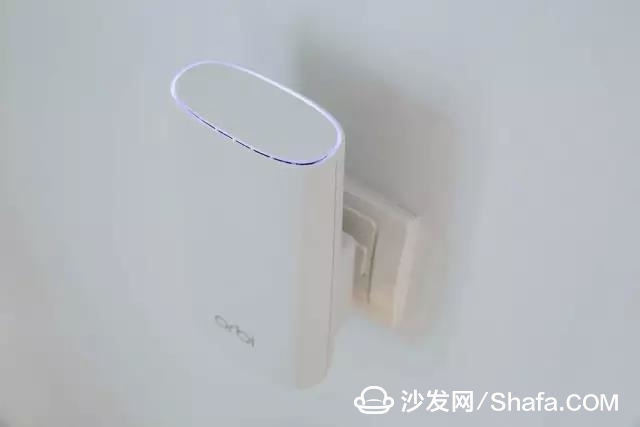

The avatar route RBW30 appears to be much smaller, I think it is more convenient to take the wall plug and take power, you can move to every room to use. Its side design is a key signal synchronization and reset button.

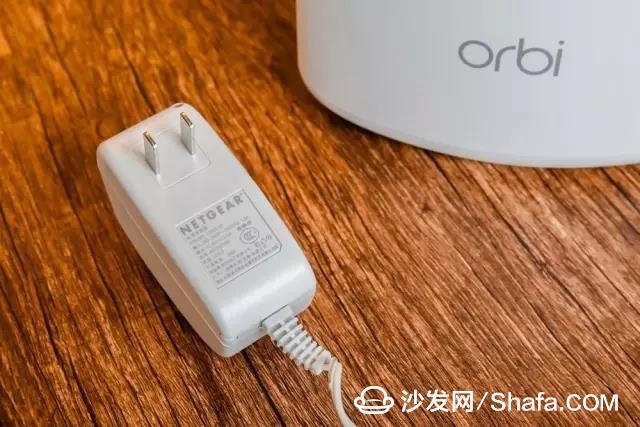

Power adapter uses 12V 2.5A power supply
Let's talk about its networking mode: It is much more convenient than the ordinary router + routing or AP mode, without complex configuration, the two devices will automatically establish a link after boot. This is mainly determined by the signal of the avatar route RBW30. When the blue light is on, the connection between the body and the avatar is good; when the amber light is on, the signal is normal and the distance between the two needs to be adjusted; when the magenta lights, two The device did not establish a connection.
Second, the signal test
The Ontology Routing RBK30 has a quad-core processor and 4G of memory and can reach AC2200 in transmission speed. In reality, a single wireless router that can cover 200m2 is very rare, unless it increases its transmit power, but this has an impact on the health of the body. The Orbi 3 Series to be experienced today can not only solve these problems, but it also supports the mainstream MU-MIMO technology while transmitting to multiple devices. For this technology, I believe that everyone has a certain understanding, in fact, this is like a highway, designing two-way N lanes to reduce the occurrence of congestion. Not much talk about nonsense, then test the Orbi 3 series signal strength:

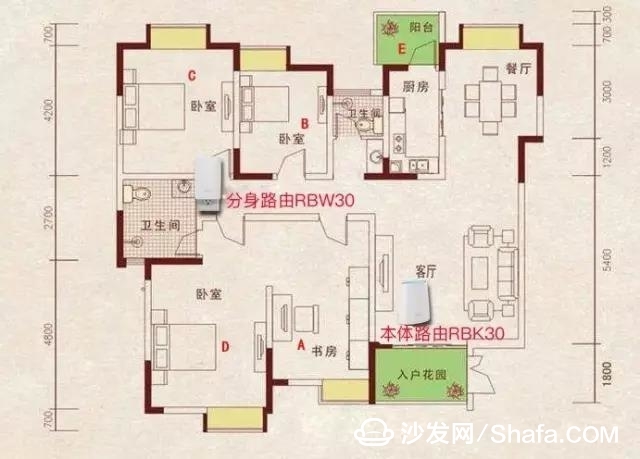

In the past, the 120-square-foot home was able to get a single router with a mesh nighthawk series. However, if the area is more than 180 or even 200 square meters, it is difficult for a single router to achieve coverage. The 196m2 home to be tested this time puts the RBK30's ontology route on the living room TV cabinet, and the avatar router is plugged into the bathroom's outer wall. Then we test the signal conditions at points A, B, C, D, and E. (To ensure the authenticity of the signal, all bedroom doors will be closed during the test):
1, first use the tinypad X230T notebook computer to test, equipped with windows7 64-bit operating system, external network of USB 6200 Ac wireless network card.

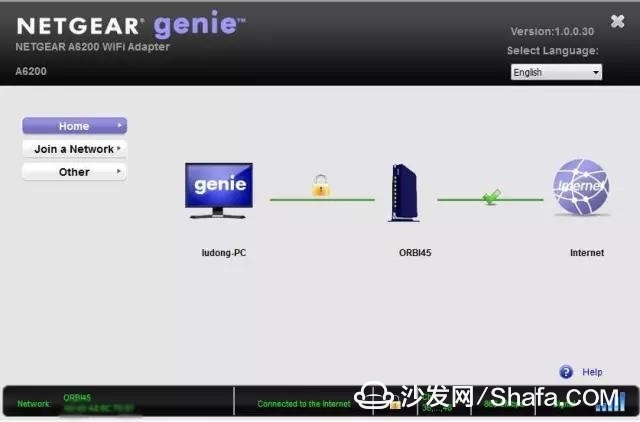

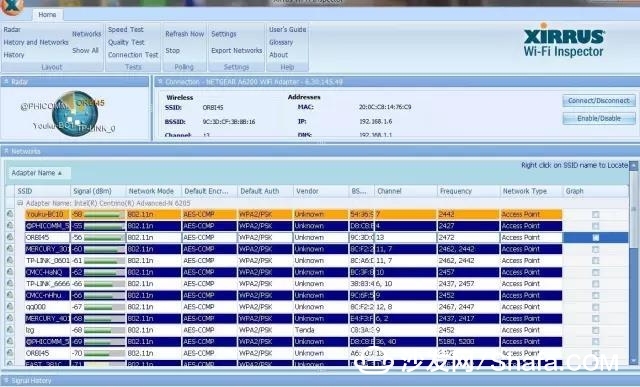

Use NETGEAR genie can see the current connection status, 5G signal can also be 866.5Mbps! At this point, it was found that the Orbi 3 Series RBK30 AC2200 uses a tri-band WiFi, proprietary 5G band, so in the test, the better signal value will be selected.

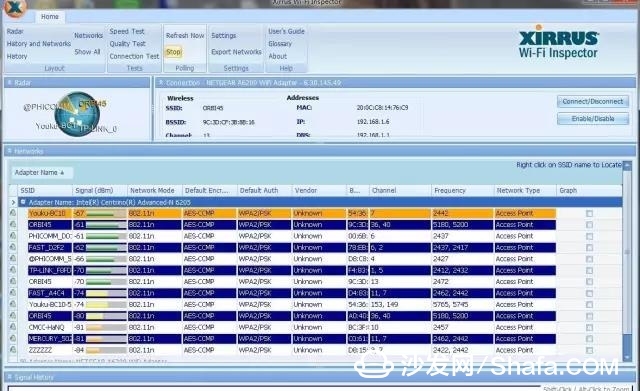

Signal condition at point A: The signal is -56

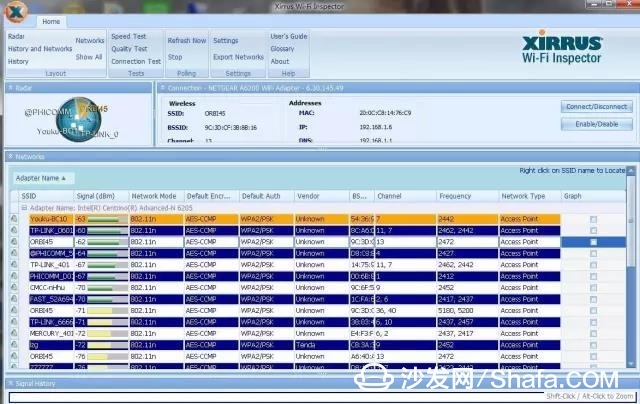

Signal condition at point B: The signal is -61
Signal Condition C: The signal is -62
Signal Condition D: The signal is -64

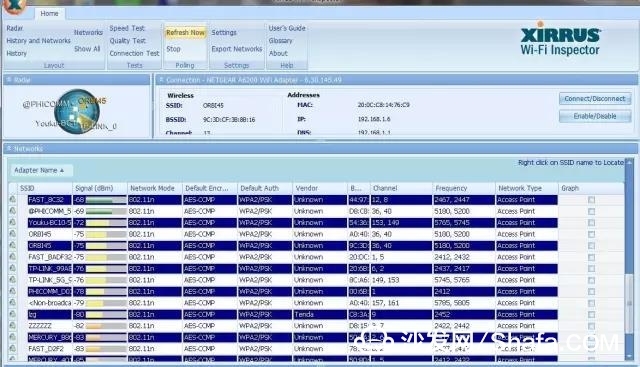

Signal condition of E point: Signal is -75
From the results of the notebook computer test, this set of nets Orbi 3 series is obviously different from the router used before, in the signal coverage has been home to 200m2, and the signal value is controlled around -60dBm, so The signal has no effect on regular work or entertainment. In particular, access to 100Mb telecommunications, download speed will be very powerful. Of course, the E point farther away (balcony) has been separated from the bulk route signal by more than two walls, and its signal has been attenuated, but it still maintains a signal value of -75 dBm. , other Internet or office is still relatively normal.

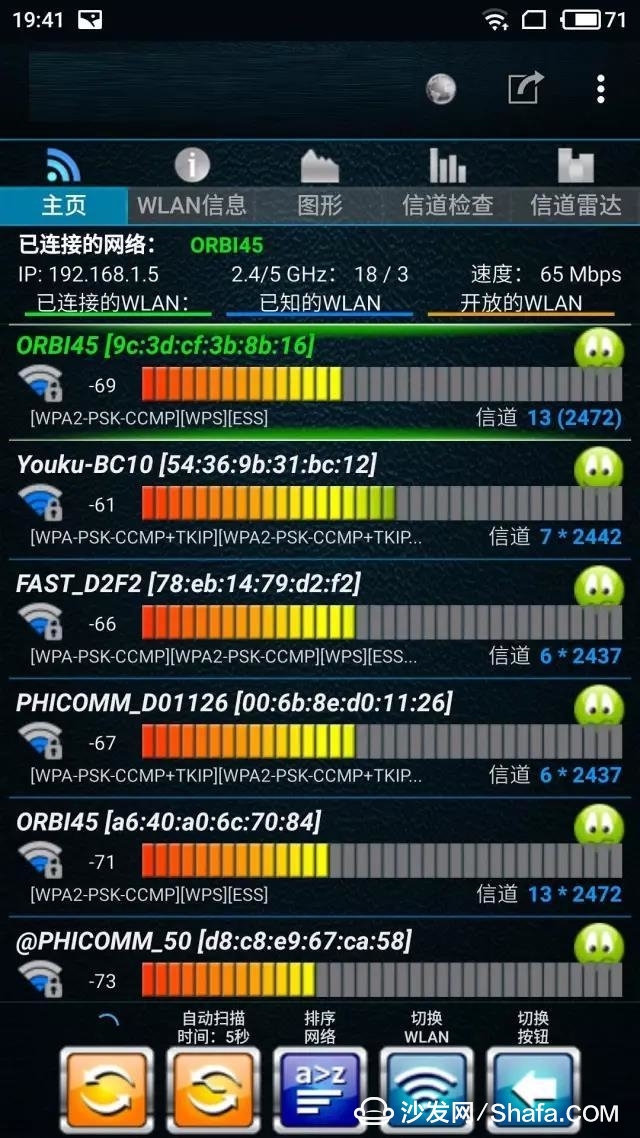

2, using a mobile phone to test the signal
Signal Condition A: The signal is -61

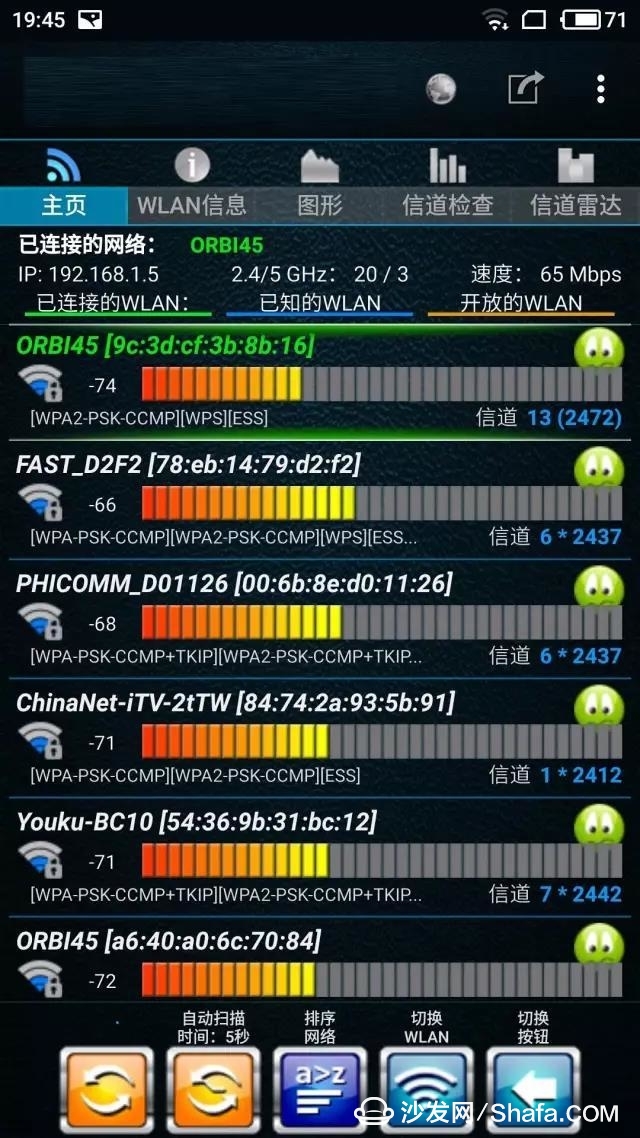

Signal Condition B: The signal is -74

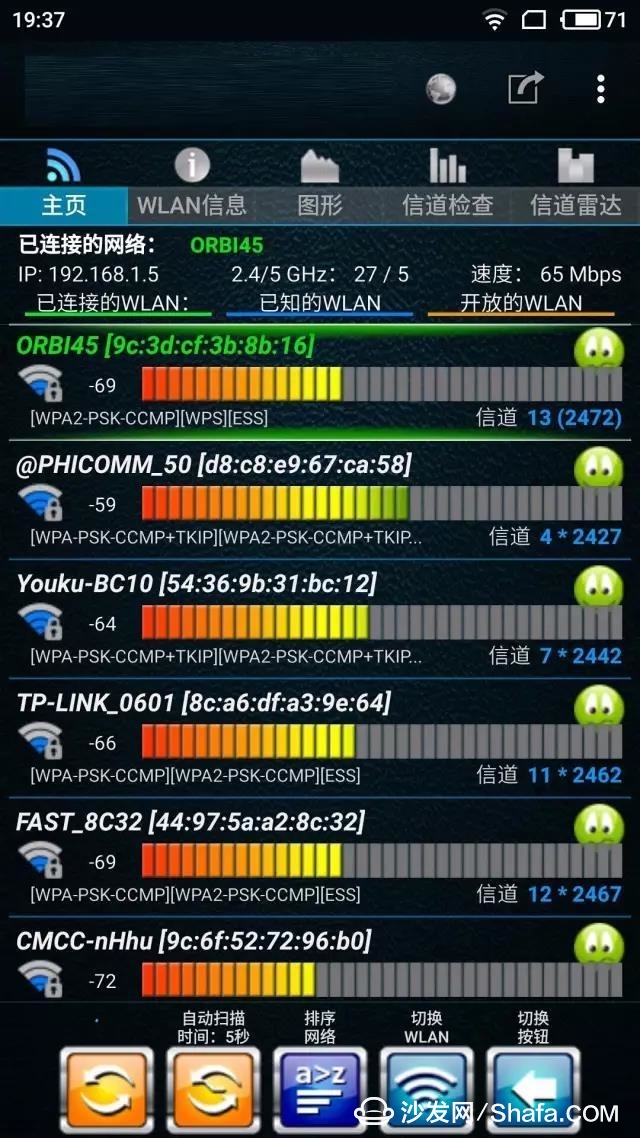

Signal condition at point C: signal is -69
Signal condition at point D: signal is -69

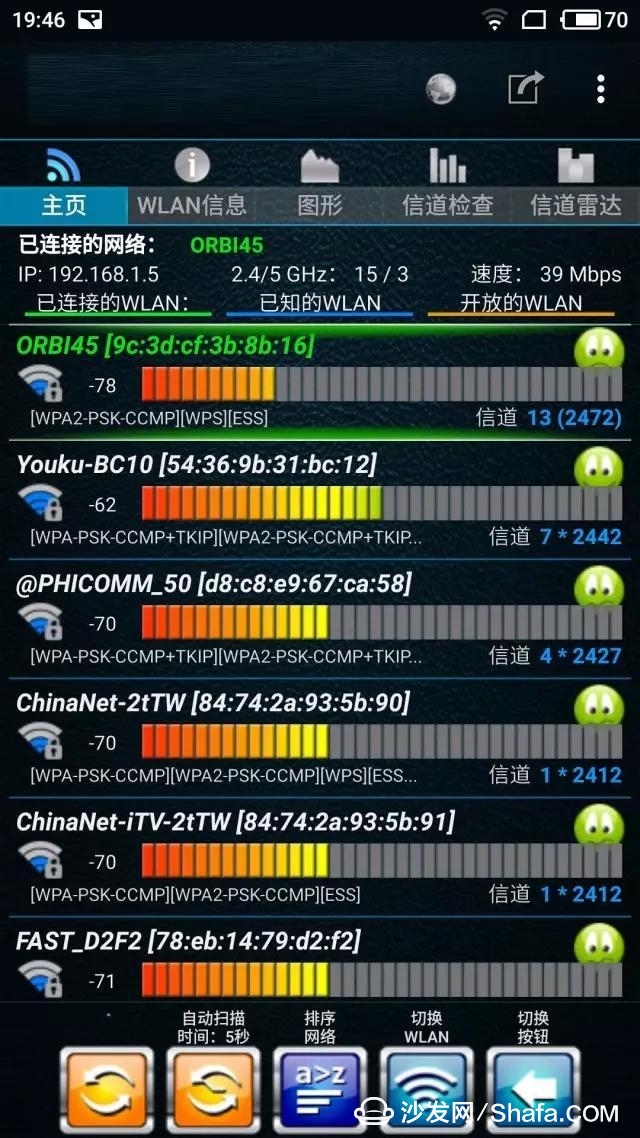

E-point signal condition: Signal is -78
The reality is also that the signal received by the mobile phone is much worse than the computer, especially the effect after the wall will be even worse. However, the results of the Orbi 3 series are still relatively satisfactory, even if the remote E point is also controlled within -80dBm, the last site, Weibo, WeChat can get, but the king of glory can only be achieved at other points. This effect is much stronger than my previous AP network, mainly because of its stability and speed control in place.

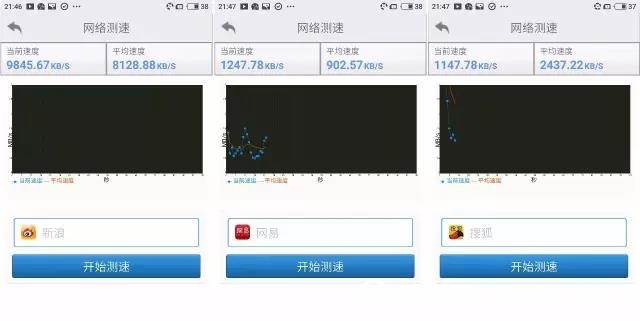

The author used a mobile phone at point D to test the connection speeds of the three websites (it was 100M telecommunication access at home): Sina’s average speed was 8MB/s, NetEase’s average speed was 1MB/s, and Sohu’s average speed was 2.4MB/s. This speed can meet the needs of all mobile phone networks, of course, different server speeds may also be different.
Playing with the king's glory at point D is also cool, and its speed is awesome.
Third, the bandwidth test
It has been learned above that the transmission rate of the Orbi 3 series can reach 2200Mbps. In fact, this is the cumulative total of the three frequency bands. How many are there actually? Do not use software simulation test
Test host: client tinypadX230T, equipped with windows 7 64-bit operating system (intel180G SSD hard disk) server is an assembly desktop, onboard Realtek PCIe Family Controller network card, and installed windows 7 64-bit operating system (Kingston 120G SSD hard drive ).
Test Software: Client: IXCHARIST 6.7 X64
Server: ENDPOINT 7.3
Cable length: client 1 meter, server 3 meters

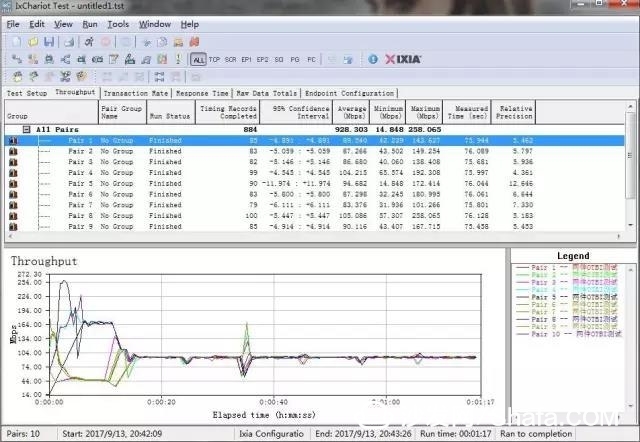

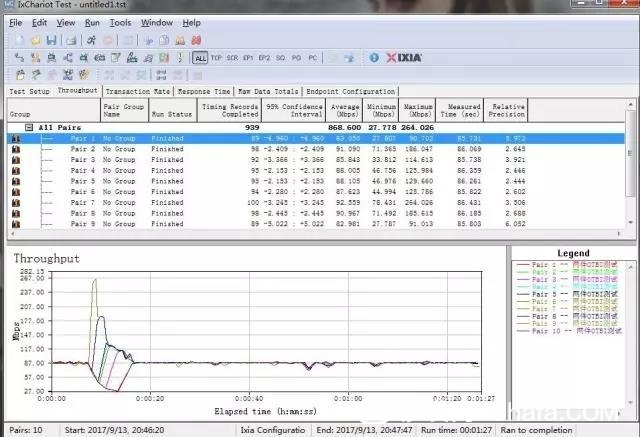

The average of the 10 downlinks is 928 Mbps (both the server and the client are Gigabit NICs and the transmission rate can reach 1000 Mpbs).
10 Upstream performance is also good, 868Mbps

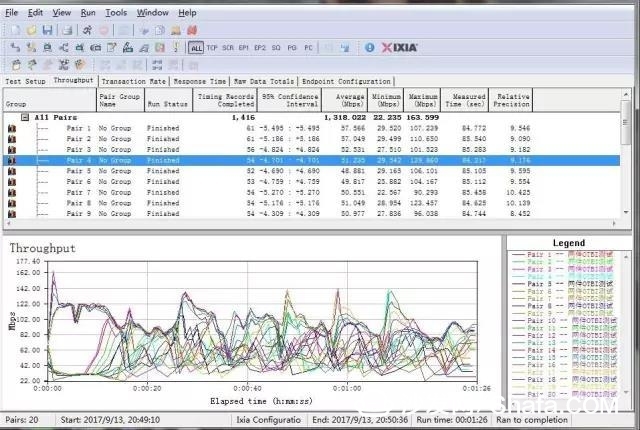

The total of 10 at 10 and 10, with an average of only 1318 Mpbs, is also a place where there are many puzzling points. There are more than 900 uplinks and 800 downlinks. According to common sense, it should be 1700 Mbps. It seems that the principle of the network is very profound.
Let's look at the situation of wireless transmission. The wireless network card is netware A6200 (867+300)

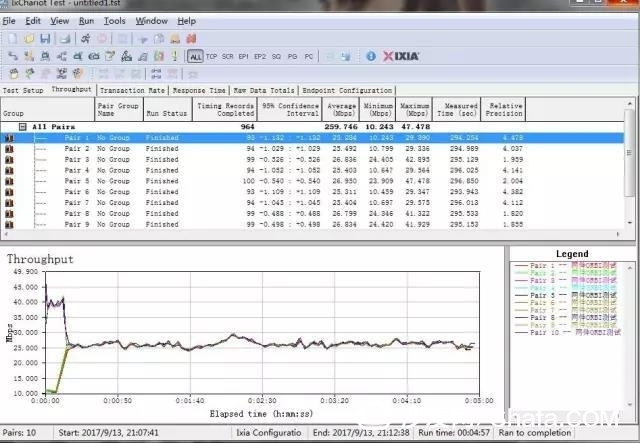

Wireless 10 lines down the behavior of 259Mbps
The number of uplinks of wireless 10 lines is more than that of downlink: 264Mbps

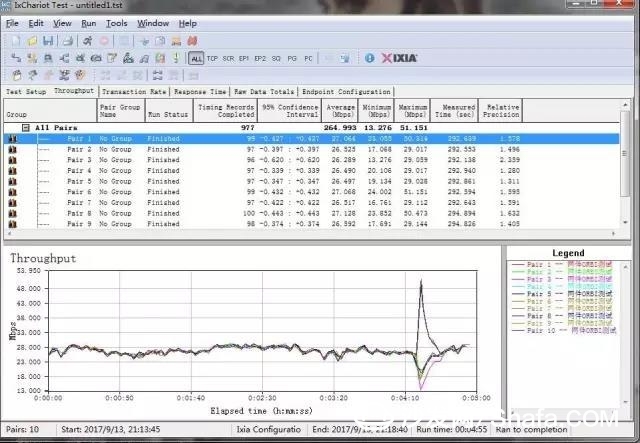

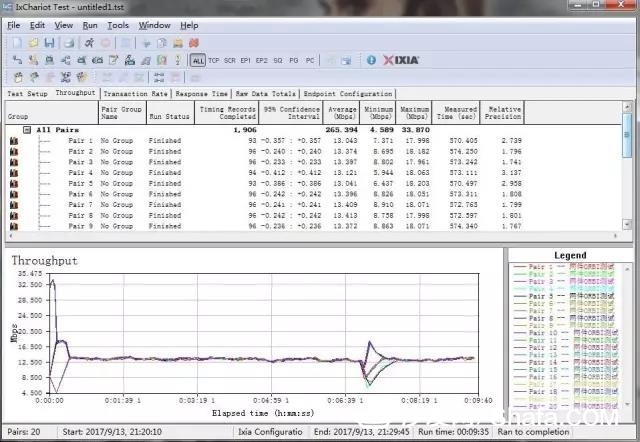

The uplink and downlink of the wireless 20 lines have also reached 265Mbps.
In fact, in the life, wireless signal is the most used place, mobile phones, tablets and various smart devices are basically wireless access, Orbi 3 series can meet the use of a 200m2 family.
Fourth, route management
In the past when playing a router, the basic configuration was based on computers. This Orbi setup was done by my mobile phone.

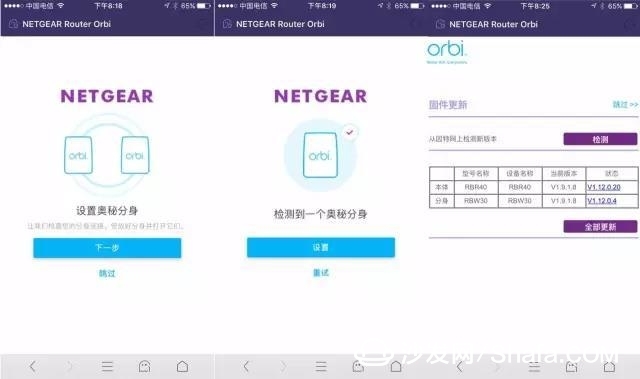

After the APP downloads, scanning the QR code on the camera can be automatically detected. However, the English interface looks a little unhappy, but fortunately, the next step is to point it out.
In the configuration interface can be automatically converted to Chinese, as long as the Wan mouth connected, you can easily access the Internet.
The ontology routing is configured, and the connection of the body is also configured in the ontology routing. The two devices must be in the boot state and must be kept within a certain range. During the setup process, new firmware upgrades are discovered and are automatically detected. After the update, the connection between the avatar and the avatar can be interconnected, and the Mesh network coverage does not need to be connected to the ontology routing. This means that no matter how far away from the ontology route, Far, your home has always had wireless coverage, and yet it does not slow down! I searched for a simple connection method using the Daisy Chain Topology.

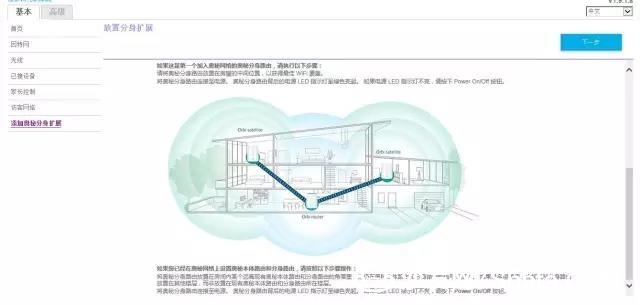

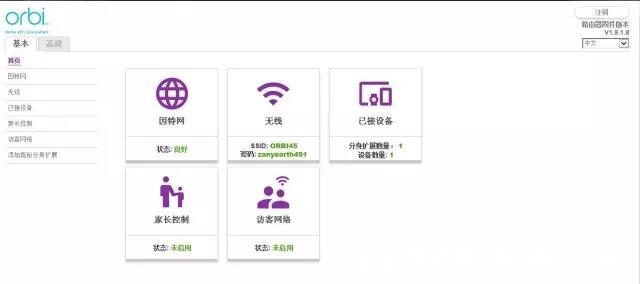

This time there is a description of the formation of avatar in WEB management. Different places can be found here.
V. Personal summary
The purpose of buying this Orbi 3 series is to let the 200m2 house get full coverage. From the test signal, I'm still quite satisfied. The signal of each test point is controlled around -60dBm. This is because ordinary routers cannot Than. Of course, you can use this method of RBW30 which you can see in your eyes. As long as there is a socket, you can directly access the signal. At the same time, the signal is stronger than the ordinary AP or power cat, and the signal attenuation is basically not seen. Of course, there are also painful places, the price of 1699 is also supported by the Queen to buy, but considering the signal coverage, after all, a set of solutions to the needs of large house coverage, it seems worth. After changing the villa later, you don't need to worry about the wireless coverage problem. Then you can take care of yourself again. (Please allow me to imagine it ~)
advantage:
1, good design, can be displayed as jewelry;
2. The connection between the body and the body is automatically identified, which is much simpler than the AP.
3, support MU-MIMO technology, multi-device connection does not appear congestion;
4, full coverage of the signal, avatar can also move on demand, avatars can also be interconnected;
5, bandwidth transmission is also more to force;
6, APP configuration and management more simplified;
Disadvantages:
1, no USB design, can not play file storage;
2. When the tri-band signals are combined, it is difficult to see which one is 2.4G which is the 5G signal;
